e700 Automatic Transport Ventilator

Description
Additional Info
Description
Multiple Modes, compact, Lightweight, easy to use

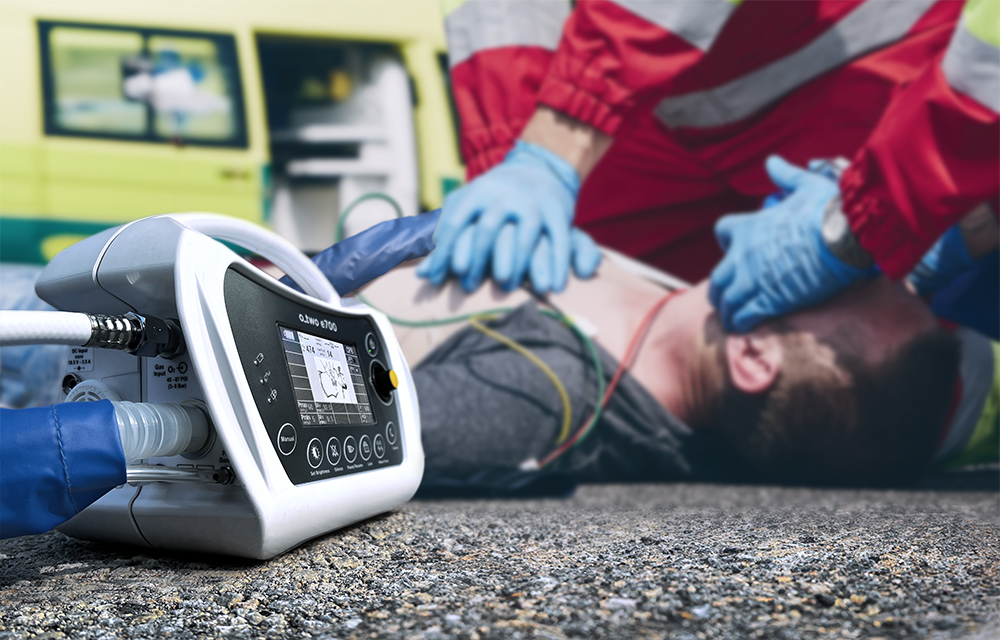

The e700 ventilator ushers in a “new era” in controlled ventilation for resuscitation and patient transport. The electronically controlled, pneumatically powered ventilators provides a range of ventilation solutions for all types of patient requirement and all levels of pre-hospital and in-hospital healthcare professionals.

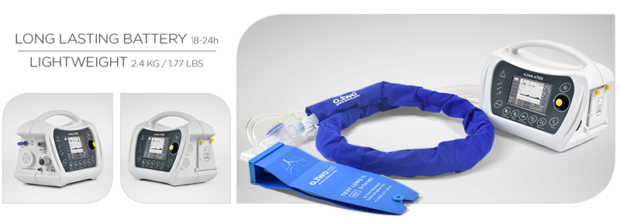

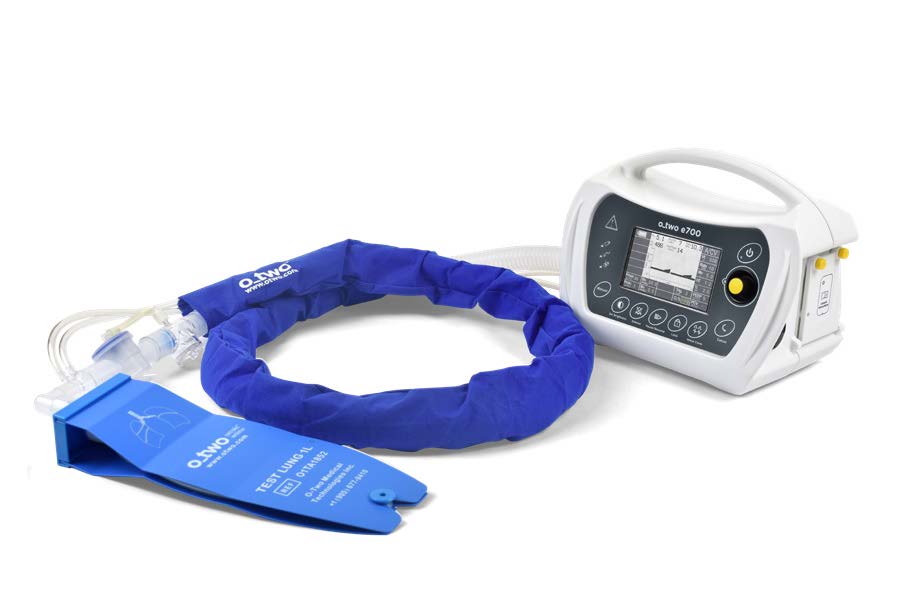

The range of ventilation solutions offered by the e700 cannot be compared to any other product of their type. With an easily changeable, long lasting (18-24hr) battery pack the units are self contained and only require attachment to a regulated oxygen supply and a transport ventilator circuit for immediate use. The easily changeable battery pack can be charged whilst inside the e700 or can be removed for quick charging and repalced by a fresh and readily available battery pack. The display has both night and day modes for easy visualisation of the settings. Designed for a range of patient sizes (from large adults to infants), all models come in a very small and lightweight package.

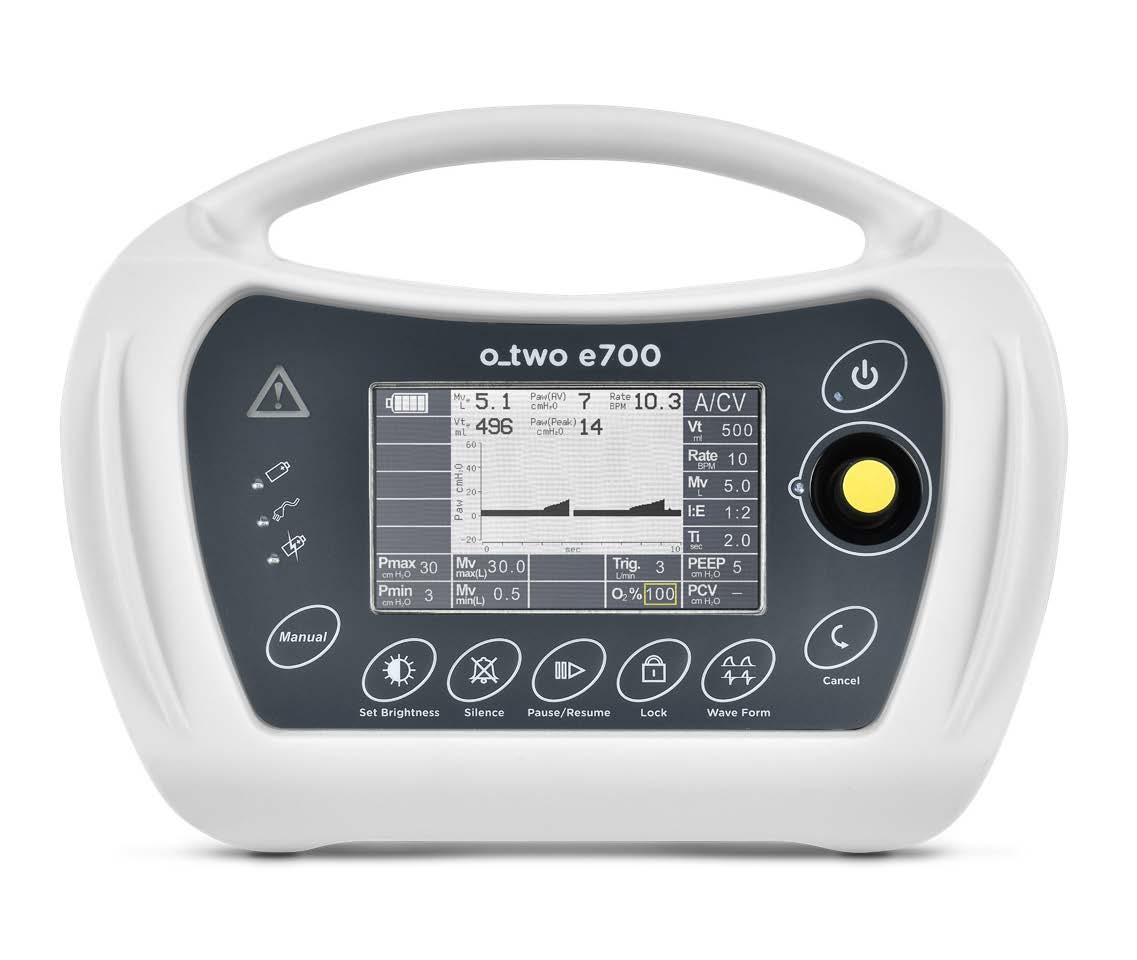

The standardised controls on the e700 provide an ease-of-use concept that is second to none. Establishing patient ventilation parameters is achieved simply, by containing everything in one screen. The user does not need to scroll through multiple layers to achieve their desired parameters. The units have an initial, pre-set, start-up mode requiring only the selection of patient size to begin ventilation. The e700 is design with speed and precision in mind to simplify even the most complex ventilation setup.

e700 Specification Sheet
e700 Instructions for Use

Additional Info
Device Class per MDD

ll b

Classification

IEC60601-1
Protection against electric shock: Class II, Type BF
Protection against water: IP X4

Power Source

Compressed Oxygen, 45 to 87 PSI (3-6 Bar)

Circuit Control Source

Electrotonic

Ventilation Modes

A/C (VCV,PCV), SIMV w/ PSV, BiLVL w/ PSV, CPAP w/ PSV, Mask CPR & Intubated CPR

Supporting ventilation

PSV: 0, 4-35cmH2O (+/- 10% or +/- 2cmH2O)

Ventilation Rate:

5-60 (+/- 10% or +/- 1BPM)

Minute Volume (L)

Calculated

Tidal Volume (ml)

50 – 2000 +/- (4ml + 15%) BTPS*

Tidal Volume in CPR mode (ml)

50 – 1400 +/- (4ml + 15%) BTPS*

Maximum Delivered Flow (L/min)

100-120

Manually Triggered Ventilation

Yes, set flow rate or pressure will be delivered during I time then inspiratory hold

Maximum Inspiratory hold time

6 seconds

I:E Ratio

1:4 – 3:1 (+/- 20%)

PEEP (cmH2O)

0.4-20 (+/- 10% or +/-2 cmH2O)
